Size: M11 - M14
Diameter: 5 0mm
Recommended Drill Size: 6.0 mm
Shank: 6.0mm Square Shank
Application:

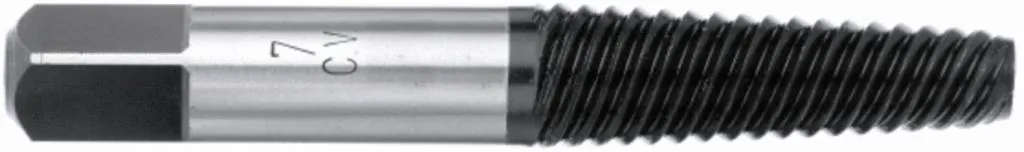

The Tork Craft Screw Extractor is for the removal of broken bolts and studs, made of carbon steel. Determine the size of the bolt and the desired extractor size, use a file and flatten the broken bolt surface, usually bolts that broke are left with an uneven surface.
Locate the center on the flattened surface and mark with a center punch. Drill a pilot hole, start off with a small diameter and increase to the recommended drill size depending on the extractor size in use.
Insert the extractor into the pilot hole and using a tap wrench the bolt can now be extracted carefully, by turning the screw extractor anti-clockwise.
- Carbon Steel
- Quick & Easy removal of broken bolts and studs
Recommended tap wrench:
- NR9002C
- NR9003C
- NR9004C
- NR9006C
Specifications
| Description | Specifications |
| Size | 5 mm |
| Cutting Length | 29 mm |
| Length | 75 mm |
| Shank | 6.0 mm Square |
